Supports three languages English, Korean and Simplified Chinese. English is the default language.
Notes:
1). This product doesn't have a built-in amplifier but audio signal output only to an external amplifier.
2). The function of microphone was removed.
PRODUCT SPECIFICATIONS | |
Product Name | Digital Audio Player Module |
Model No. | TPM006C |
Operating Voltage | DC 12V |
File System | FAT32 |
Support Format | MP3/WMA/WAV/FLAC/ACC |
USB | Yes, Up To 64GB |
SD | Yes,Up To64GB |
FM | Yes |
AUX | Yes |
Bluetooth | Yes |
Record | Yes, MP3 Format 48KHZ, STEREO,128KBPS |
Folder | Yes |

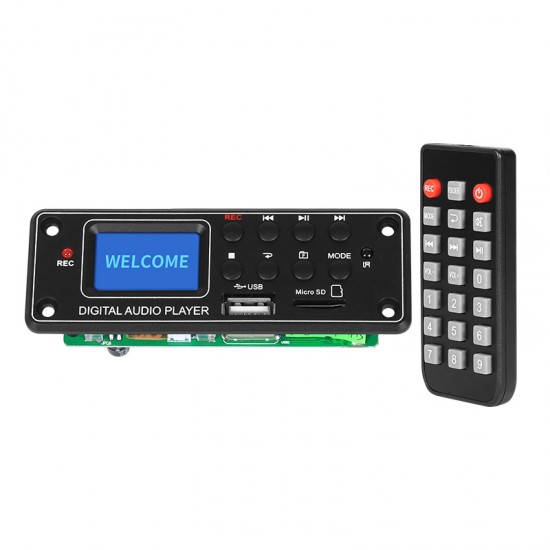

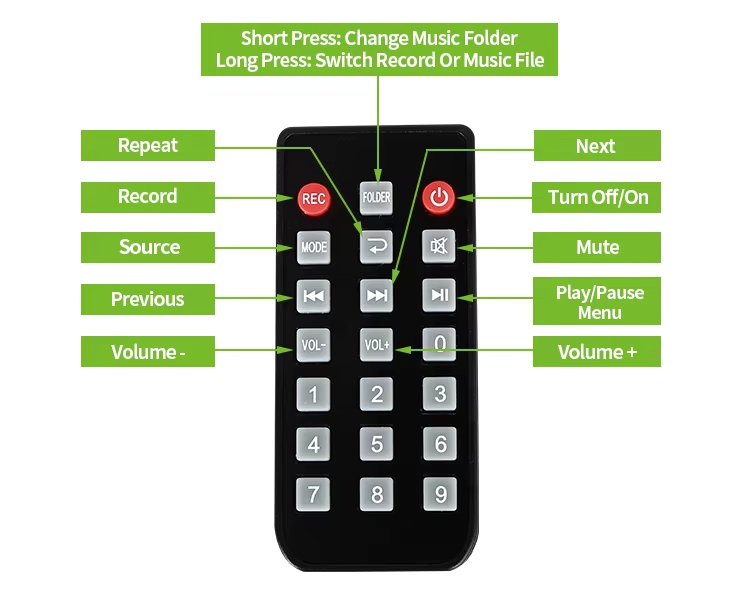

Remote | Yes |
LED Display | No |
Segment LCD | No |
Dot Matrix LCD | Yes, 128*64 Dots |
Song Name/List Display | Yes |
Logo Display | Yes |
Firmware Upgrade | Yes |
Plastic Panel | Yes |

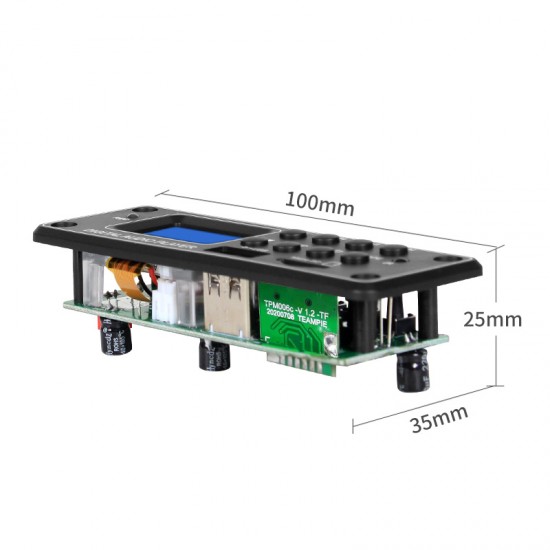

Size | L100*W35*H26 mm |
1st, long press the Play/Pause button to enter system settings, and you will see the option of Language. See below.
2nd, short press the Play/Pause button to enter language selection page, then choose the language you want through the Previous and Next button.
- Stock: 100
- Model: TPM006C
- Weight: 0.12kg
- Dimensions: 100.00mm x 35.00mm x 26.00mm
